Overview
Brief Introduction

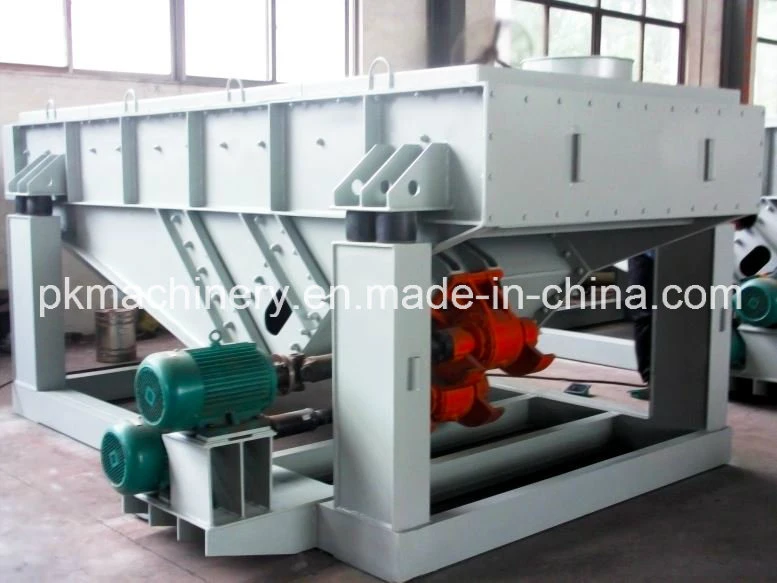

Linear vibrating screen is a kind of screen equipment. It is usually used for the screening and grading materials in large, middle and small particles, can be widely used in plastic, food, rubber, ceramic, chemical, fertilizer, glass industries.
Structure info.(Including Base Materials)
Linear vibrating screen mainly consists of screen box, screen frames, screen mesh, damping spring, frame, driven device and so on.
1. Screen box: carbon steel, also can be stainless steel
2. Screen mesh: high manganese steel, spring steel 65Mn, stainless steel
3. Damping spring: rubber spring, steel spring, rubber-steel composite spring
Features:
1. Good sealing, little dust overflow, environmental.
2. Less energy consumption, less noise, longer service life.
3. High screening efficiency, great handing capacity and simple structure
4. Multi-layer, can screen material into many grades.
5.With self-cleaning device according to require.
Quality guarantees
1. Quality objectives: Utilization ratio, Product yield ratio, Qualification Ratio 100%.
2. Process inspection qualification rate 98%.
3. Products performance test qualification rate 100%.
4. Staff position competition specialized skill 100%.
Technical datas:
Brief Introduction
Linear vibrating screen is a kind of screen equipment. It is usually used for the screening and grading materials in large, middle and small particles, can be widely used in plastic, food, rubber, ceramic, chemical, fertilizer, glass industries.
Structure info.(Including Base Materials)
Linear vibrating screen mainly consists of screen box, screen frames, screen mesh, damping spring, frame, driven device and so on.
1. Screen box: carbon steel, also can be stainless steel
2. Screen mesh: high manganese steel, spring steel 65Mn, stainless steel
3. Damping spring: rubber spring, steel spring, rubber-steel composite spring
Features:
1. Good sealing, little dust overflow, environmental.
2. Less energy consumption, less noise, longer service life.
3. High screening efficiency, great handing capacity and simple structure
4. Multi-layer, can screen material into many grades.
5.With self-cleaning device according to require.
Quality guarantees
1. Quality objectives: Utilization ratio, Product yield ratio, Qualification Ratio 100%.
2. Process inspection qualification rate 98%.
3. Products performance test qualification rate 100%.
4. Staff position competition specialized skill 100%.
Technical datas:
Type | Layer | Sieve Dimension (mm) | Sieve Mesh (mesh) | Particle Size(mm) | Capacity (t/h) | Power (kW) | Double Amplitude (mm) | Frequency (r.p.m) | Screen Angle (degree) |
| ZS-520 | 1-5 | 500X2000 | 2-325 | <20mm | <5 | 0.37x2 | 6-10 | 1460/960 | 0-10 |
| ZS-525 | 1-5 | 500X2500 | 2-325 | <20mm | <8 | 0.37x2 | 6-10 | 1460/960 | 0-10 |
| ZS-612 | 1-5 | 600X1200 | 2-325 | <20mm | <3 | 0.37x2 | 6-10 | 1460/960 | 0-10 |
| ZS-1020 | 1-5 | 1000X2000 | 2-325 | <20mm | <12 | 0.75x2 | 6-10 | 1460/960 | 0-10 |
| ZS-1025 | 1-5 | 1000X2500 | 2-325 | <20mm | <16 | 0.75x2 | 6-10 | 1460/960 | 0-10 |
| ZS-1030 | 1-5 | 1000X3000 | 2-325 | <20mm | <20 | 1.1x2 | 6-10 | 1460/960 | 0-10 |
| ZS-1224 | 1-5 | 1200X2400 | 2-325 | <20mm | <23 | 1.5x2 | 6-10 | 1460/960 | 0-10 |
