sand separation vibrating screen

Features1: Due to strong vibratingon the screening box, cause material plugging reduced, so that the screen can get a high screening efficiency and productivity;2: Simple structure, convenient to replace the screen, less power consumption;3: Due to the pulley centerlineand the bearing centerline

Featured Products


Features
1: Due to strong vibratingon the screening box, cause material plugging reduced, so that the screen can get a high screening efficiency and productivity;
2: Simple structure, convenient to replace the screen, less power consumption;
3: Due to the pulley centerlineand the bearing centerline are not along the same line, that can eliminate resonance for the belt, reduce its fatigue and wear, which also can increase the amplitude for sieve, and further increase the productivity.

Descriptions

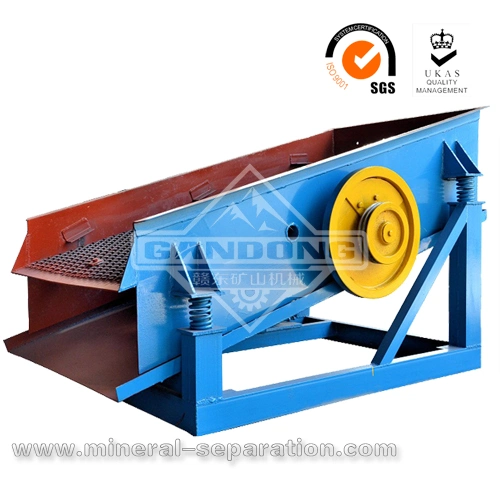

Automatic center vibrating screen can be used for coarse, fine and superfine size separating for ore and coal, also can be used for dewatering or desliming processing forother materials.The automatic center vibrating screen consists of vibration exciter, screening box, supporting device and motor.

Motor through V-belt drives the axis of exciter rotating, due to imbalance on the rotating vibration exciter produce the centrifugal inertial force, it let the screening box start vibrating.Change eccentric weight of the vibration exciter can get different amplitudes.



(Note:According to different requirements of customers, our company applies vibrating screen with different specifications and vibrating modes.)

Our Services

1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.

if you are interested in our products, please send me message in below blank, then click"send", we will reply within 24hours,or call us. thanks your time.
Mobile: +86 183-7987-3189
Salesman: Mily

Technical Specifications

Model

Layer

Max.
Feeding size
(mm)

Sieve
Size
(mm)

Capacity
(t/h)

Frequency
(r/min)

Angle
(°)


Motor
Power
(Kw)


Dimension
L*W*H

Weight
(kg)

SZZ600×1200

1

40

1-25

10-20

1000

15-25

2.2

1370×890×330

340

SZZ2600×1200

2

40

1-25

10-20

1000

15-25

2.2

1370×890×430

360

SZZ900×1800

1

40

1-25

20-25

1000

15-25

2.2

2150×1358×575

550

SZZ2900×1800

2

40

1-25

20-30

1000

15-25

3

2489×1358×770

620

SZZ1250×2500

1

100

5-40

150

850

15-20

5.5

2762×1714×680

1100

SZZ21250×2500

2

150

5-40

150

850

15-20

5.5

2702×1714×740

1300

SZZ1500×3000

1

100

1-40

220

800

15-25

7.5

3320×1449×787

2100
