Yk circular vibrating screen ISO&SGS

SpecificationsCircular Vibrating ScreenFactory but not Trading CompanyAdopt cylinder exciterAdopt tire couplingAdopt spring screenDescription( Well tech Circular Type Vibrating Screen )The YK circular vibrating screen is a new screening equipment, the vibrational trajectory is an ellipse, is designed specifically for materi

Featured Products

Specifications
Circular Vibrating Screen
Factory but not Trading Company
Adopt cylinder exciter
Adopt tire coupling
Adopt spring screen
Description( Well tech Circular Type Vibrating Screen )

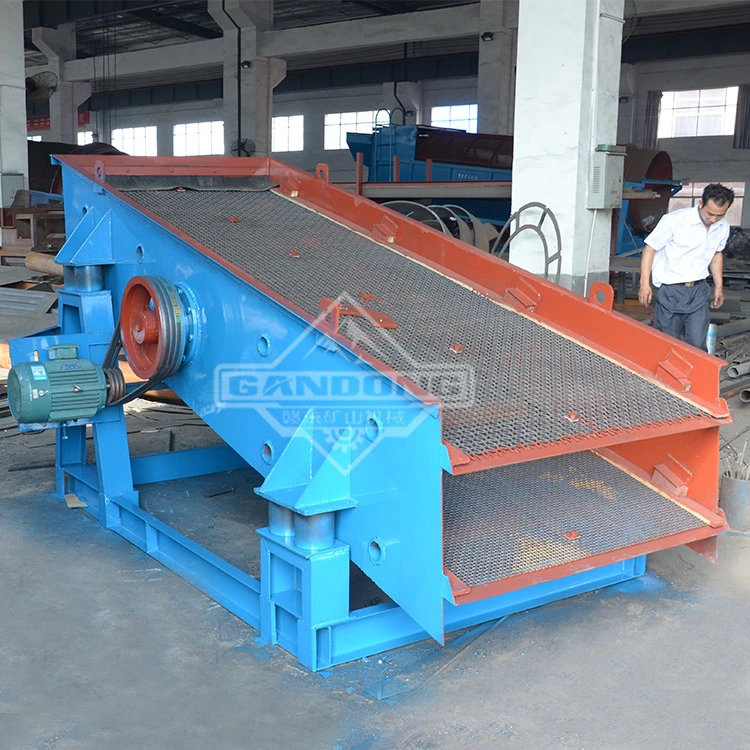

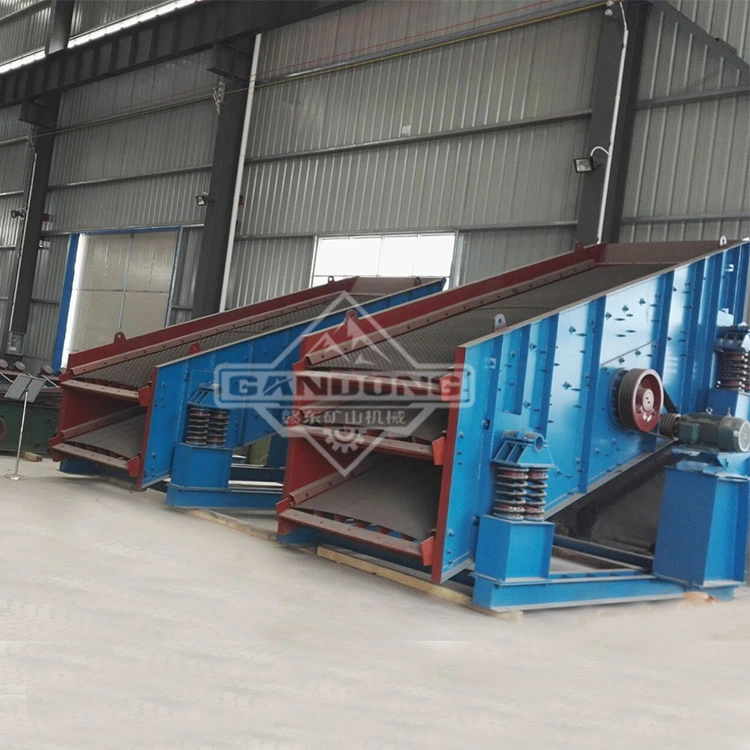

The YK circular vibrating screen is a new screening equipment, the vibrational trajectory is an ellipse, is designed specifically for material stone screening in quarry, but also used for coal preparation, mineral processing, building materials, electricity and chemical departments for product classification.
Advantages and Characteristics
1 Novel structure, advanced technical parameters, large capacity, high screening efficiency
2 Adopt cylinder type of eccentric shaft vibration exciter and an eccentric block for amplitude adjustment, easy to use and maintain
3 Adopt tire coupling, soft connection makes operation smooth
4 Adopt spring steel woven screen or punched screen plate, long useful life and no plugging
5 Long life, quiet, smooth resonance region
Main Technical Parameters
ModelLayerSieve size
(mm)
Max. Feeding size
(mm)
Amplitude
(mm)
Angle
(°)
Capacity
(t/h)
Power
(Kw)
3YK123033-50< 200800-9702012-1205.5
3YK133636-50< 2009702015-16011
3YK154835-80< 2009702050-25015
3YK184835-80< 2009702050-30018.5
3YK186035-80< 2009702050-35022
3YK216035-100< 20073020100-50030
3YK246035-150< 20073020150-70030
3YK277035-150< 20073020200-80030*2
4YK154845-80< 2009702050-25018.5
4YK184845-80< 2009702050-30022
4YK186045-80< 2009702050-35022
4YK216045-100< 20073020100-50030
4YK246045-150< 20073020150-70037
4YK277045-150< 20073020200-80030*2

Yk Circular Vibrating Screen with ISO&SGSYk Circular Vibrating Screen with ISO&SGSYk Circular Vibrating Screen with ISO&SGSYk Circular Vibrating Screen with ISO&SGS



Yk Circular Vibrating Screen with ISO&SGS
