Product Description

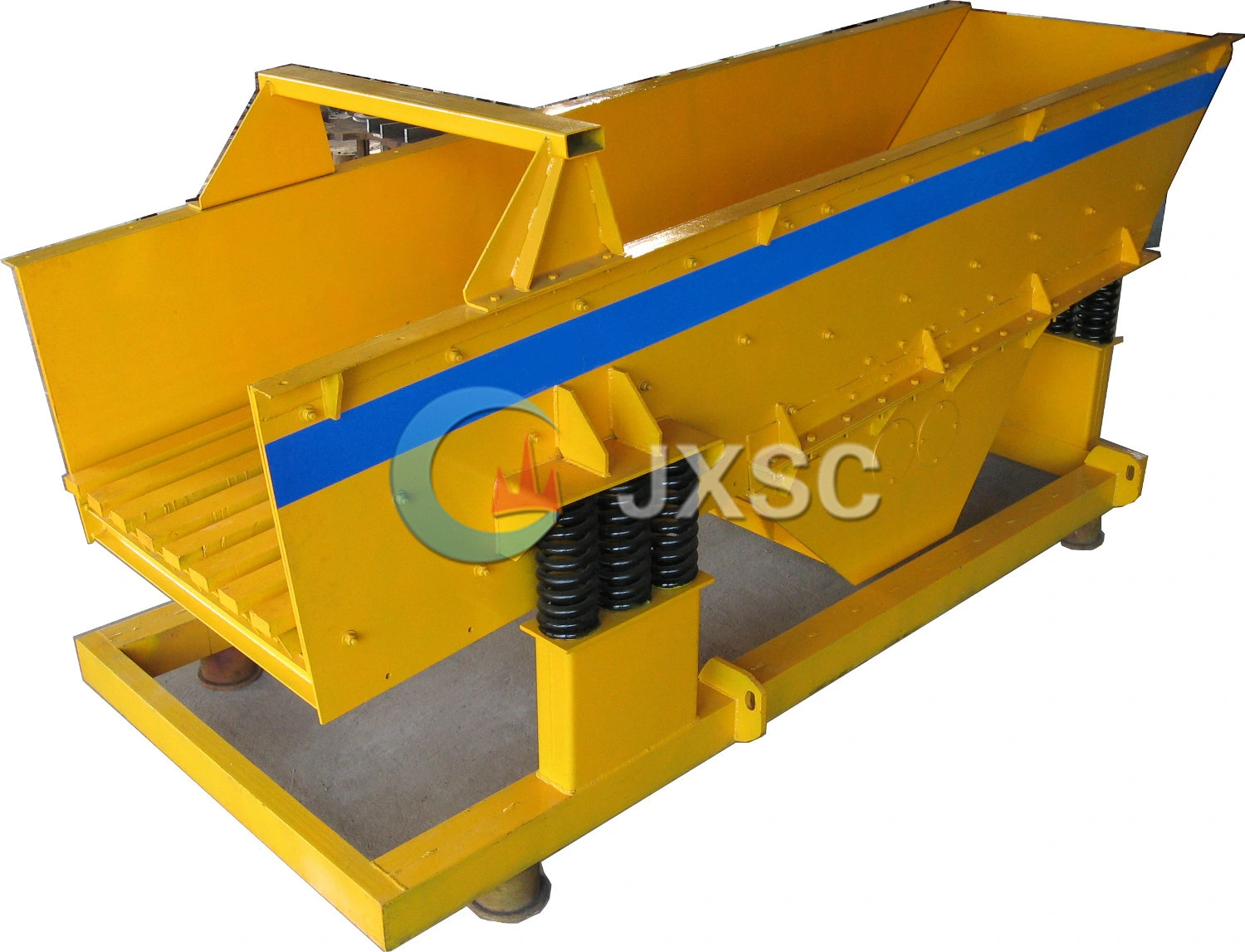

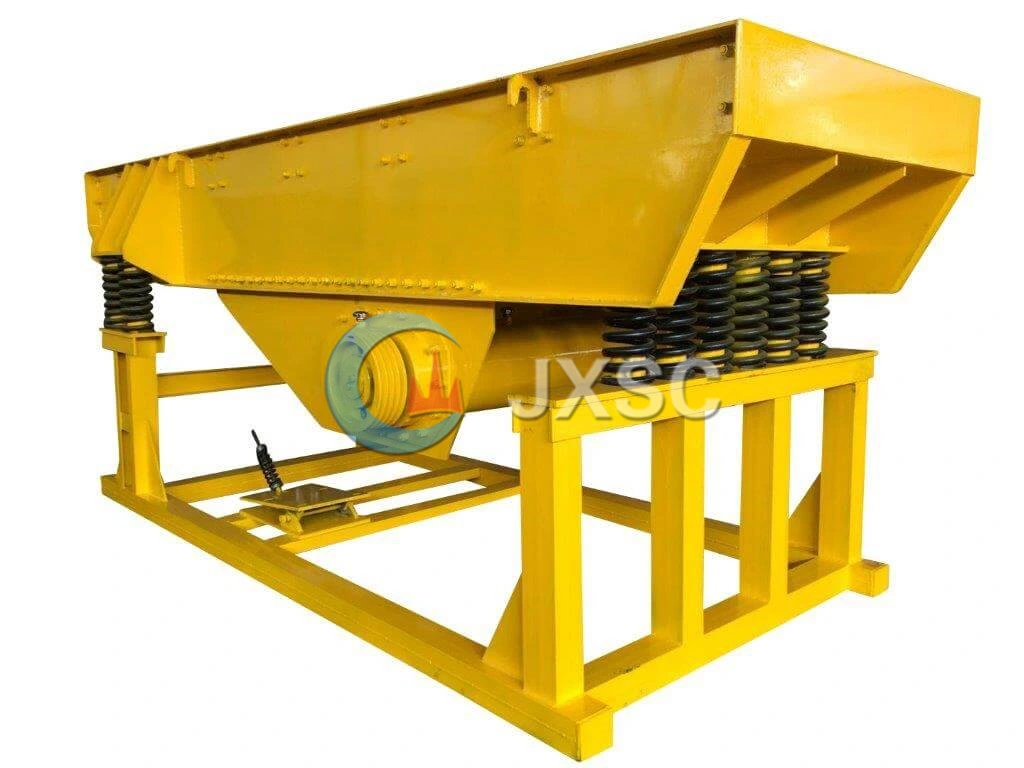

Our companys feeder series is a kind of linear direction vibration feeder. it makes a feature of smooth vibrating, reliable in operation, long service life and suitable for feeding, material into the crusher while screening away soil contained in the raw material. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
Vibrating feeder cansend the massive, granular materials into feeding device from the storage binin uniform, timing, continuously. It can feed continuously and uniformly forcrushing machine in sand-make line, and screening of rough materials. Widelyused in crushing, screening equipment in metallurgy, mining, mineralprocessing, building materials, chemical industry, abrasive and otherindustries.
Vibrating feeder iscomposed of a feeding trough, vibrator, spring support, driving device, etc. Bodyvibration feeder vibration source is the vibration exciter, which is composedof two eccentric shaft (main, passive) and gear pair. Motor drives the drivingshaft through the belt, and the driving shaft gear driven shaft rotation. Thedriving shaft and the driven shaft reverse rotation at the same time, the bodyvibration, so that the material continuous flow, achieve the purpose ofconveying material.
Application Field:
Quarry, crawler sand,dry mortar, mechanism sand, power plant desulfurization, quartz sand, etc.
Suitable Material:
Pebble, granite,basalt, iron ore, limestone, calcite, quartz and diabase.
Performance characteristics of our products:
1. Smallvolume, light weight, simple structure.
2. Easy toinstall, repair, low operation cost.
3. Highefficiency, good feeding capacity.
4. Low noise,low power consumption, high power factor.
5. Stablevibration, even feeding, long service life.
Product Details
Structure Chart
Specification Parameter
More model please contact us,the model also can be customized
Related Products
Packing & Delivery
Packing:
1. Standard parts packed in the wooden cases 2. Big parts packed by plastic membrane
3. The whole machine is loaded in the container
Shiping: by sea/air freight,or any way the customer requires
Our Company
Jiangxi shicheng Mine Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported toAfrica,Nigeria,Zambia,Zimbabwe,Congo,Uganda,Mozambique,Angola,Southeast Asia,South America and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
Our Services
Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
FAQ
How long is the guarantee?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine`s delivery time is 30-48 days.
What is the nearest port?
Xiamen, Guangzhou, Shenzhen
What is the trade terms?
CIF,FOB,DDU ect is acceptable.
Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
Certifications
Our companys feeder series is a kind of linear direction vibration feeder. it makes a feature of smooth vibrating, reliable in operation, long service life and suitable for feeding, material into the crusher while screening away soil contained in the raw material. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
Vibrating feeder cansend the massive, granular materials into feeding device from the storage binin uniform, timing, continuously. It can feed continuously and uniformly forcrushing machine in sand-make line, and screening of rough materials. Widelyused in crushing, screening equipment in metallurgy, mining, mineralprocessing, building materials, chemical industry, abrasive and otherindustries.
Vibrating feeder iscomposed of a feeding trough, vibrator, spring support, driving device, etc. Bodyvibration feeder vibration source is the vibration exciter, which is composedof two eccentric shaft (main, passive) and gear pair. Motor drives the drivingshaft through the belt, and the driving shaft gear driven shaft rotation. Thedriving shaft and the driven shaft reverse rotation at the same time, the bodyvibration, so that the material continuous flow, achieve the purpose ofconveying material.
Application Field:
Quarry, crawler sand,dry mortar, mechanism sand, power plant desulfurization, quartz sand, etc.
Suitable Material:
Pebble, granite,basalt, iron ore, limestone, calcite, quartz and diabase.
Performance characteristics of our products:
1. Smallvolume, light weight, simple structure.
2. Easy toinstall, repair, low operation cost.
3. Highefficiency, good feeding capacity.
4. Low noise,low power consumption, high power factor.
5. Stablevibration, even feeding, long service life.
Product Details
Structure Chart
Specification Parameter
| Model | Max Feed Size(mm) | Capacity (t/h) | Motor Power (kw) | Installation Slope(°) | Double Amplitude(mm) | Weight(kg) | Overall Dimension(L*W*H)(mm) |
| GDN-0724 | 450 | 30-80 | 2*1.5 | 10 | 4-6 | 2422 | 2481*1130*990 |
| GDN-0932 | 560 | 80-150 | 2*2.4 | 10 | 4-8 | 3203 | 3298*1512*1195 |
| GDN-0940 | 560 | 80-180 | 2*3.7 | 10 | 4-8 | 3700 | 4100*1818*1134 |
| GDN-1148 | 600 | 150-300 | 2*5.5 | 10 | 4-8 | 5060 | 4926*1676*1475 |
| GDN-1256 | 800 | 180-400 | 2*7.5 | 10 | 4-8 | 6385 | 5704*1840*1492 |
| GDN-1560 | 1000 | 400-600 | 2*13 | 10 | 4-8 | 8900 | 6110*2440*1560 |
More model please contact us,the model also can be customized
