high efficiency energy saving easy operation rocking sieve equipment for silica sand separation
Product Introduction:

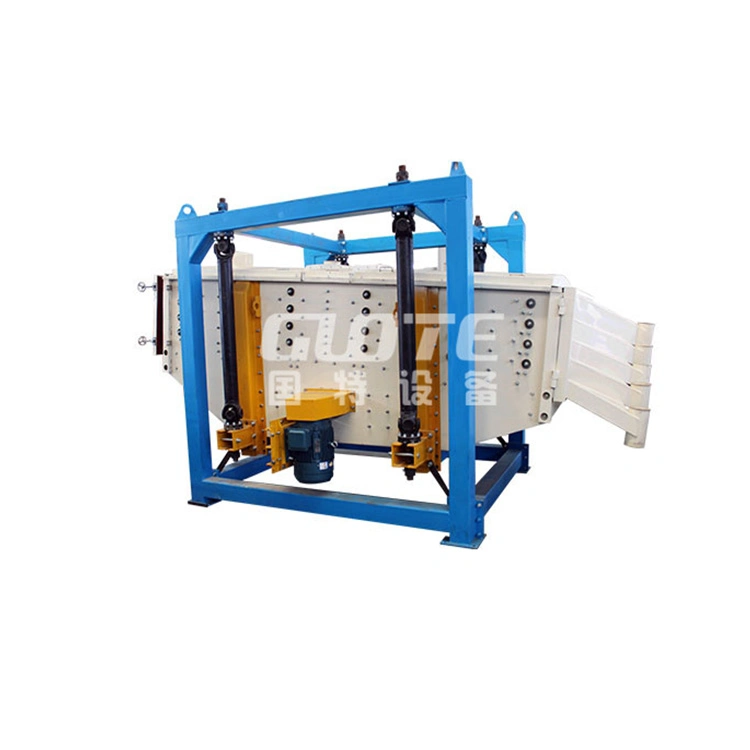

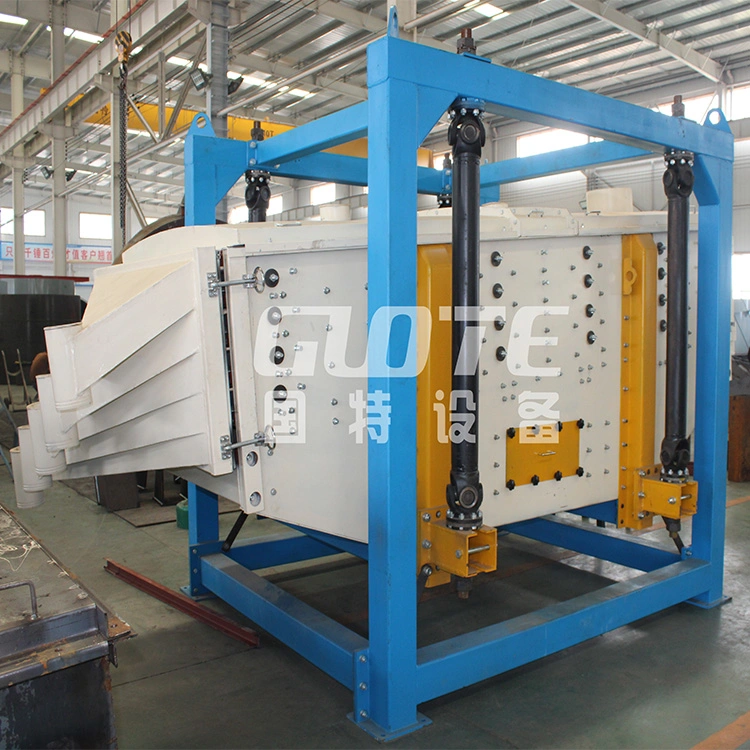

The square swing screen is a kind of high-efficiency screening equipment with high precision and large output specially designed for pursuing the screening accuracy at the expense of output. The vibration and vibration motion of the vibrator is transmitted to the screen surface through the square-shaped oscillating screen, so that the materials are quickly dispersed in the front of the sieve machine, so as to achieve the purpose of sieving in the university.
Application scope:
It is Widely used in chemical industry, metallurgy, non-ferrous metals, non-ferrous metals, food, abrasives and other industries.
Advantages :
1. Reasonable design, long service life: reasonable design, simple structure, stable operation; energy saving and environmental protection, long service life, high screening accuracy, simple operation, in line with global users' production process requirements.
2. Stable high-capacity operation: unique grid structure and cleaning method, effectively prolong the service life of the screen and improve the production accuracy and capacity; the vibrating screen adopts a professional supplier of vibrating screen accessories to solve your worries about the replacement of accessories. Safe and reliable, saving maintenance costs.
3. Precise positioning: precise positioning, professional engineer design, combination of multiple styles, can effectively screen particles, powders, and slurries.
4. Complete variety: complete variety, single layer and multiple layers can be selected at random, the outlet can be rotated 360° at will, suitable for continuous assembly line production.
Working principle:
Machine sand production line mainly consists of vibrating feeder, jaw crusher, impact crusher (cone breaking), vibrating screen and belt conveyor, sand washing machine, centralized electric control and other equipment.
In order to meet the different processing needs of customers, it can be equipped with cone crusher, dust removal equipment and so on.Large pieces of stone are sent to the jaw crusher for coarse crushing by the vibrating feeder.
The coarsely crushed stone is sent to the sand making machine for further crushing by the belt conveyor;The finely divided stone is sent to a vibrating screen for screening by a belt conveyor.
Sieving several different specifications of sand,The sand that satisfies the granularity requirement is sent to the finished product pile by the finished belt conveyor or sent to the finished product warehouse after being washed by the sand washer.
The coarse particles are sent to the sand making machine by the return material belt conveyor to be broken again to form a closed loop.The finished product particle size can be combined and graded according to the user's needs.
In order to protect the environment, auxiliary dust removal equipment can be equipped.
Technical parameter:
Type | Effective screening area (m²) | Power (kw) | Screen angle° | Number of layers | Rotation frequency (r/min) | Screen box travel (mm) |
GFYB1030 | 3 | 3 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB1036 | 3.6 | 3 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB1230 | 3.6 | 4 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB1236 | 4.32 | 4 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB1530 | 4.5 | 5.5 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB1536 | 5.4 | 5.5 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB1830 | 5.4 | 7.5 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB1836 | 6.48 | 7.5 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB2030 | 6 | 7.5 | 5-8 | 1-5 | 180-260 | 25-60 |
GFYB2036 | 7.2 | 7.5 | 5-8 | 1-5 | 180-260 | 25-60 |
Company Information:
Our customers :
Our Services:
1.EPC service for single equipment and whole production line.
2.OEM service for your personal equipment or production line
3.Testing before delivery and Pretesting in working site until get qualified products
4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
Packaging & Shipping:
Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.
Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.
Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
