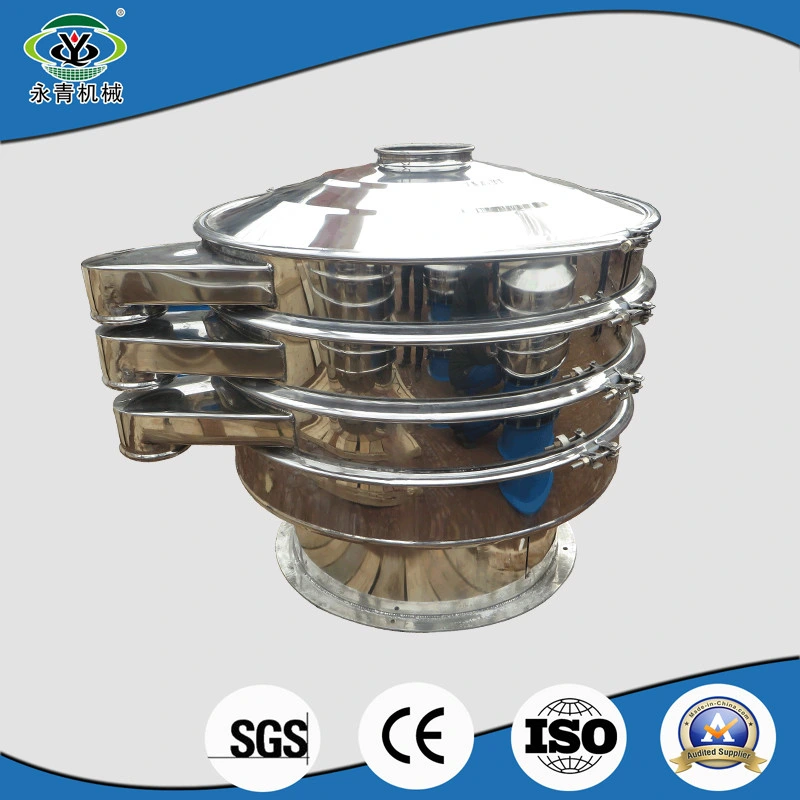

SUS304 xxnx hot circular rotary vibrating screen
Principle
Our circular vibrating screen, as a piece of powdery material screening equipment, uses horizontal vibration motor or special vibration exciter as its vibration source. The horizontal vibration motor and vibration exciter have a eccentric block at the both at their upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined directions. By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movement locus, achieving suitable screening performance.
Specification Sheet
| Model | XZS- 500 | XZS- 600 | XZS- 800 | XZS- 1000 | XZS- 1200 | XZS- 1500 | XZS- 1800 | XZS- 2000 |
| Diameter(mm) | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
| Layer | 1-5 | |||||||
| Mesh size(mm) | 0.025-20 | |||||||
| Rated speed(rpm) | 1440 | |||||||
| Power (kw) | 0.12 | 0.18 | 0.36 | 0.5 | 1.1 | 1.1 | 1.5 | 1.5 |
Feature
1. The screening precision of our circular vibrating screen is excellent, and the blocking rate of the screen is less than 10% in average.
2. The movement locus and vibration amplitude are both adjustable. Any granular, powdery and serous materials could be roughly screened, or just filtered according to the material applications.
3. The screening machine is 500-2000 mm in diameter, and the overall size is quite small. Wheels can be mounted on it for convenient moving.

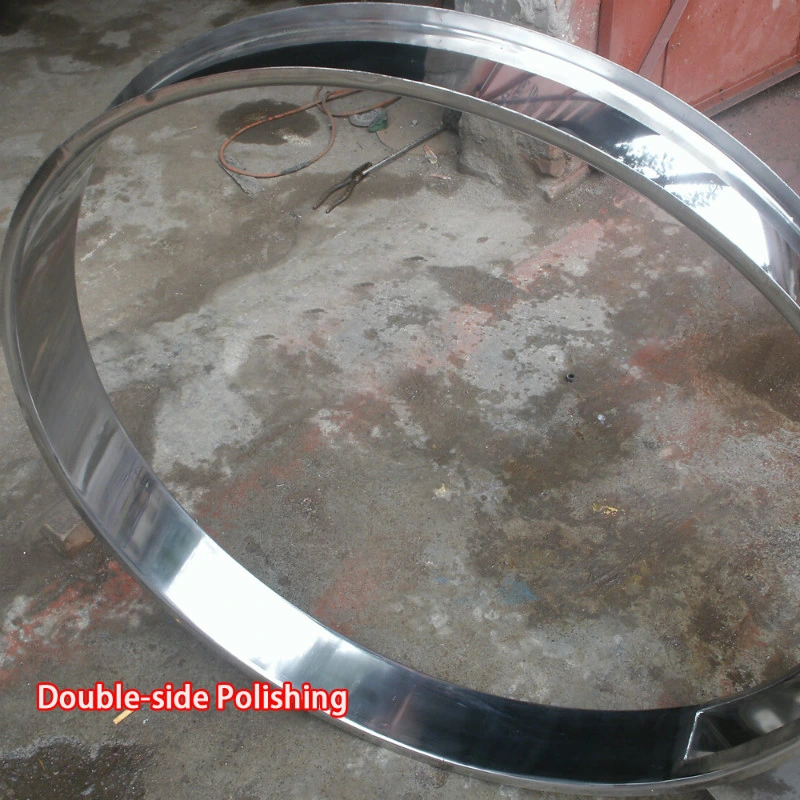

4. The screen frame of the circular vibrating screen is specially designed. It takes only 5-10 min for the screen changing. The stainless steel wire woven net is easy to clean and operate, while the life span is quite long.
5. Completely enclosed structure is adopted so the particulate matter pollution in the air is quite limited.
6. The discharging outlet can be rotated at 360 degree, facilitating the installation of matching equipment.
7. The energy consumption of our circular vibrating screen is small, while the noise could reach as low as 73-80 dB.
8. During the operation, if short circuit, phase loss or unstable voltage occurred, the motor will automatically cut off the power supply and stop working to make sure the motor will be not burnt out. Thus the electric element's damage can be reduced to an extremely low level.
9. The protective grade of the motor comply with IP65, which means it is dustproof and waterproof. Besides, it is also heatproof and oil proof.
Application
1. Food industry
Our circular vibrating screen can be used for processing starch powder, sugar powder, sale, rice flour, milk power, soybean mile, sauce, fruit juice, condiment, and so on.
2. Chemical industry
This rotary vibrating sieve is widely used for handling resin powder, paint, industrial chemicals, detergent powder, cosmetic, Chinese medicine powder.
3. Metallurgy industry
In metal processing industry, this linear vibrating screen can sift aluminum powder, lead powder, copper powder, alloy metal powder, electrode powder, manganese dioxide powder, electrolytic copper powder, abrasive powder, High temperature resistant material, kaolin, limestone, dolomite, alumina, calcium carbonate, quartz sand and so on.
4. Pollution abatement
Our circular vibrating screen is also suitable for treating waste oil, sewage, accessory ingredient, activated carbon.
Optional configuration and service
1. The linear vibrating screen could be modified to suit various power voltages, including 110V 220V 240V 380V 415V 450 V and 550V, different power frequencies, 50Hz or 60Hz, and even single phase electricity.
2. The wheel, viewing hole, and frequency converter are available according to your requirements.
3. The OEM service is available.
Required inquiry information
Please provide the follow information for a suitable machine:
1. material name, the density, water content(%).
2. the necessary capacity you required(per hour)
3. Machine material. Pls choose one:
a. SUS 304 or SUS316
b. All carbon steel 235 A
c. The contacting part is SUS304, the other parts is carbon steel.
4. the dimension of the machine can be designed for you.
5. Additional parts ,like the mobil wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained
All of your information (email, Tel, Fax, etc) will be not published without permission.
